Comparison between Containerized and Plant-Room Gas Generator Sets
In the field of energy supply, gas generator sets are widely used in industrial, commercial, and emergency power applications due to their efficiency and environmental friendliness. When it comes to installation and deployment, containerized and plant-room configurations are the two main options. Each has its advantages and disadvantages. A thorough understanding of their differences is crucial for planning power generation projects and improving energy utilization efficiency.
1. Space Utilization and Flexibility

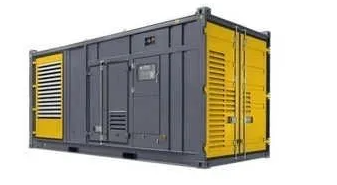

(1) Containerized Type Containerized gas generator sets use standard containers as enclosures, offering a highly integrated structure. The layout is compact, with equipment neatly arranged to maximize efficiency within a limited space. Standard container sizes (e.g., 20ft or 40ft) result in fixed volumes and small footprints—often only a few dozen square meters. This compact design is particularly advantageous for projects with limited site availability, such as backup power for urban commercial areas or small-scale factories. In addition, containerized units can be transported easily by road, rail, or sea, enabling rapid deployment to meet temporary or mobile power needs such as at construction sites or outdoor events.
(2) Plant-Room Type Plant-room gas generator sets require dedicated buildings for installation. The construction of such facilities depends on the size and number of units and related equipment, often covering areas from several hundred to several thousand square meters. Although spacious and suitable for accommodating the main units and auxiliary systems, the flexibility of space utilization is limited. Once constructed, altering the layout or location of the units is challenging. Furthermore, the longer construction period makes it less adaptable to rapidly changing site conditions or urgent power demands.
2. Construction Cost and Timeline
(1) Containerized Type Costs are primarily associated with the generator set itself and container modifications. Due to the high degree of integration, most assembly and testing are done in the factory, requiring only basic on-site positioning and connections. This significantly reduces site work and labor costs. Moreover, there is no need for extensive civil works such as building foundations or flooring, resulting in a relatively low initial investment. Typically, containerized units can be delivered and operational within a few weeks—ideal for urgent power supply needs.
(2) Plant-Room Type Costs involve land acquisition, building construction, generator installation, commissioning, and supporting infrastructure. Design and construction must consider structural integrity, fire safety, ventilation, and noise insulation, all contributing to high material and labor expenses. Plant-room projects go through planning, design, and construction stages, often taking several months to years. Weather, permit approvals, and other uncertainties further increase time and risk costs.
3. Environmental Adaptability and Protection Performance
(1) Containerized Type Containers provide robust structural protection with high resistance to rain, dust, and wind (up to IP23/IP54 protection ratings). They are well-suited for harsh environments such as open fields, mining sites, or ports. Specially designed containers may also feature thermal insulation, enabling operation under extreme temperature conditions. In addition, many units come with anti-vibration systems to minimize the impact of ground vibrations, ensuring stable operation.
(2) Plant-Room Type Environmental adaptability and protection depend on the building standards and supporting systems. Well-designed plant rooms equipped with ventilation and HVAC systems can maintain optimal conditions for generator operation, thus extending equipment lifespan. However, substandard construction or insufficient facilities may lead to inadequate protection under extreme weather or natural disasters like typhoons or earthquakes, posing risks to generator performance.
4. Ease of Maintenance and Operational Management
(1) Containerized Type The internal layout is engineered for serviceability, with reasonable access for inspections, routine maintenance, and repairs. Some advanced models come with intelligent monitoring systems that track operating conditions and issue early warnings, supporting remote management. However, limited space can make it difficult to perform repairs or replacements on larger components, often requiring specialized tools and techniques.
(2) Plant-Room Type The spacious environment greatly facilitates maintenance and operation. Technicians have ample room to maneuver large tools and equipment for comprehensive servicing and upgrades. Dedicated storage areas for tools and spare parts can also be set up within the plant. However, the larger area and higher equipment count may lead to increased effort and time for inspections and troubleshooting.
