How Do Gas Engine Generator Sets Generate Electricity While Saving Energy?
Many customers and industry professionals often ask:
l What is the core principle behind gas engine power generation?
l Why is it more energy-efficient than conventional power generation?
l Why are gas engine generator sets widely used in distributed energy projects?
In fact, the underlying logic is much simpler than most people think.
Today, we'll set aside the complex technical parameters and break down, in plain language, how gas engine generator sets generate electricity, why they save energy, and what makes them the preferred choice for distributed energy applications.
01 Core Principle: Four Stages of Energy Conversion
Chemical Energy (Fuel Gas) → Mechanical Energy (Pistons) → Electrical Energy (Generator) → Thermal Energy (Waste Heat)
Step 1: Fuel Gas Intake and Air Mixing
The process begins by supplying combustible gases—such as natural gas, biogas, coal mine methane (CMM), and associated petroleum gas (APG). Before entering the engine, the gas is purified and pressure-regulated, then mixe d with air at the optimal air-to-fuel ratio to ensure stable and efficient combustion.
Step 2: Combustion Inside the Cylinders
The fuel-air mixture enters the engine cylinders, where it is ignited by the spark plugs. The rapid combustion causes the gases to expand instantly, driving the pistons in a high-speed reciprocating motion, which in turn rotates the crankshaft.
At this stage, the chemical energy stored in the fuel is converted into mechanical energy. This mechanical power is the primary driving force behind the entire electricity generation process. Step 3: Driving the Generator to Produce Electricity
The rotating crankshaft transmits mechanical power to the generator, causing the rotor to spin at high speed inside a magnetic field. As the rotor cuts through the magnetic flux, alternating current (AC) is generated through electromagnetic induction.
The electricity produced can be used for on-site consumption, grid connection, or standby power, depending on the project's operational requirements.
Step 4: Waste Heat Recovery — The Key to High Efficiency
In most conventional power generation systems, recovering waste heat is either technically challenging or economically impractical. In many cases, there are no nearby thermal users to utilize the recovered heat, so it is simply released into the atmosphere, resulting in significant energy loss.
By contrast, a gas engine generates two major sources of recoverable waste heat during operation:
High-Temperature Exhaust Gas – The exhaust gas leaves the engine at a high temperature and contains a significant amount of recoverable thermal energy.
Engine Jacket Water – The engine's cooling water maintains a stable temperature, making it an ideal source for efficient heat recovery.

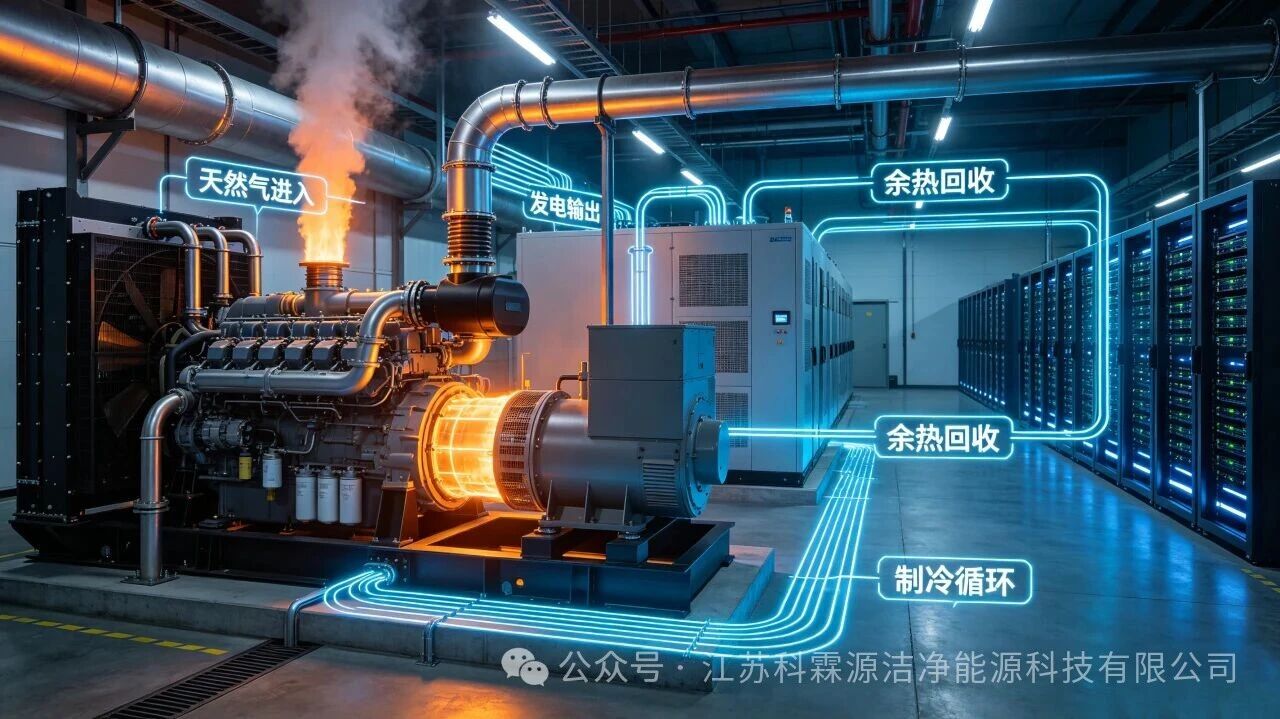

Using waste heat recovery systems, this thermal energy can be captured and reused for space heating, hot water production, or industrial process heating. It can also drive an absorption chiller to provide cooling.
As a result, a single fuel source can simultaneously deliver three forms of energy: electricity, heat, and cooling.
This is what the industry refers to as Combined Heat and Power (CHP) and Combined Cooling, Heat, and Power (CCHP), also known as trigeneration.
02 Why Is It So Energy-Efficient? Overall Efficiency Can Exceed 85%
Conventional power generation systems typically achieve an overall efficiency of only around 35%, with a large portion of the fuel's energy lost as exhaust heat and engine cooling losses.
Gas engine generator sets maximize energy utilization by generating electricity first and then recovering the waste heat for productive use. Instead of being discarded, the thermal energy is captured and reused for heating, hot water production, or cooling.
When both electrical and thermal loads are properly matched, the overall system efficiency can exceed 85%.
This is why gas engine generator sets have become the preferred solution for factories, data centers, industrial parks, hospitals, and commercial buildings—helping users reduce energy costs, improve efficiency, lower carbon emissions, and meet increasingly stringent environmental and energy regulations.
03 Key Differences from Other Power Generation Technologies
Compared with other power generation technologies:
Solar PV: Unable to generate electricity at night and highly dependent on weather conditions, resulting in intermittent power output.
Wind Power: Output is inherently variable and cannot provide a continuous, stable power supply on its own.
Coal-Fired Power: Relatively low overall energy efficiency, higher emissions, and increasingly stringent environmental regulations.
Diesel Generator Sets: High fuel costs, lower efficiency, higher emissions, and increased operation and maintenance (O&M) costs.
Gas Engine Generator Sets: Fully dispatchable, highly reliable, capable of 24/7 continuous operation, and able to recover waste heat for significantly higher overall energy efficiency.
While diesel generators and coal-fired power plants each have their own limitations, and renewable sources such as solar PV and wind power are inherently intermittent, gas engine generator sets provide a balanced solution for industrial applications that require reliable 24/7 power and high energy efficiency through waste heat recovery.
04 Three Key Benefits
Understanding how a gas engine generator set works makes it easy to see why it delivers three irreplaceable advantages:
1. Turning Waste Gas into Valuable Energy
Instead of being flared or vented, combustible waste gases can be converted on-site into electricity and useful heat. This enables businesses to reduce both electricity purchases and thermal energy costs while improving overall energy utilization.
2. Greater Energy Independence
An on-site power generation system helps protect operations from grid peak-load restrictions, power shortages, and unexpected outages, ensuring continuous 24/7 production and minimizing costly downtime.
3. Lower Carbon Emissions, Higher Efficiency
By making full use of the fuel through combined heat and power (CHP) or combined cooling, heat, and power (CCHP), a gas engine generator set significantly improves overall energy efficiency while reducing carbon emissions. It also helps businesses meet sustainability goals, comply with environmental regulations, and qualify for green manufacturing initiatives and available energy-efficiency incentive programs.
Conclusion
Gas engine generator sets are gaining increasing popularity across industries because they go beyond the traditional concept of power generation.
Today, industrial energy is no longer just about whether electricity can be generated. The real challenge is how to produce more forms of usable energy from the same amount of fuel while meeting a wider range of energy demands.
That is exactly where gas engine power generation stands out. By simultaneously delivering electricity and making full use of recoverable waste heat, gas engine generator sets maximize fuel utilization, improve overall energy efficiency, and provide a reliable foundation for modern distributed energy systems.
