➩ Product Applications
Our 200kW 1500RPM Natural Gas Generator Set is suitable for a wide range of applications, including:
Industrial & Manufacturing – Continuous power supply for factories, production lines, and industrial plants.
Commercial & Public Facilities – Reliable backup power for shopping malls, hospitals, office buildings, and data centers.
Renewable Energy & Biogas Utilization – Converts biogas from wastewater treatment plants, landfills, and farms into electricity.
Oil & Gas Fields – Utilizes shale gas and associated petroleum gas for efficient on-site power generation.
Remote Areas & Off-Grid Locations – Independent power supply for mines, rural communities, and islands.
➩ Technical Advantages
Exceptional Energy Efficiency
At the core of this generator set is a focus on minimizing energy waste. With a generation efficiency of 0.35 and optimized combustion technology, it converts natural gas into electricity with remarkable precision. The gas consumption of 10286±5% kJ/kW·h ensures that fuel is utilized effectively, reducing operational costs compared to traditional diesel generators. Additionally, its compatibility with Combined Heat and Power (CHP) systems allows for simultaneous production of electricity and heat, maximizing overall energy utilization.
High-Speed Performance & Power Density
The 1500RPM rated speed is a key advantage, enabling higher power density and rapid response to fluctuating load demands. This makes the generator set suitable for both continuous operation (e.g., industrial production lines) and peak power supply (e.g., commercial facilities during high-demand periods). The engine’s design—featuring a 6-cylinder, L-shaped configuration with a displacement of 13.5L—further enhances its ability to deliver consistent power even under heavy loads.
Eco-Friendly & Low-Impact Operation
Environmental sustainability is a standout feature. The generator set employs advanced air-fuel ratio control to ensure complete combustion, significantly reducing emissions of NOx and CO₂. Its oil consumption of ≤1.5g/kW·h minimizes waste, while the low-noise design (with optional soundproof enclosures) makes it suitable for noise-sensitive environments like hospitals or residential areas. These attributes align with global environmental regulations, making it a compliant choice for eco-conscious users.
➩ Technical Specifications
| (I)Natural gasgenerator set parameters |
| Type | NPG200 |
| Continuous power(standard state)kW | 200 |
| Rated frequency(Hz) | 50 |
| Rated voltage(V) | 400 |
| Rated current(A) | 180 |
| Rated speed (rpm) | 1500 |
| Gas consumption (kJ/kW ·h) | 10286±5% |
| Generation efficiency | 0.35 |
| Oil consumption(g/kW ·h) | ≤1.5 |
| Weight (t) | 2.4 |
| Overall dimension (Length×Width×Height)m | 3.0×1.2×1.7 |
| (II)Gas engine parameters |
| Model Type | 6138G-1 |
| Type | Four-stroke,water cooling,air natural suction,natural gas cylinder
direct injection mixing,spark plug ignition,electric control |
| Rated power(standard state)kW | 110 |
| Cylinder type | L-shaped,straight |
| Number of cylinders | 6 |
| Bore (mm) | 138 |
| Stroke (mm) | 150 |
| Displacement(L) | 13.5 |
| Rated speed (rpm) | 1500 |
| Cooling mode | Forced water cooling |
| Lubrication mode | Pressure lubrication and splash lubrication |
| Intake mode | Natural aspiration (separate air and natural gas intake) |
| Starting mode | Electric starting |
| (III)Engine |
| Type | lFC6283-4-100 |
| Rated capacity (kVA) | 125 |
| Rated voltage(V) | 400 |
| Rated current (A) | 180 |
| Power factor | 0.8 lagging |
| Rated speed (rpm) | 1500 |
| Connection mode | Three-phase four-wire |
| Excitation mode | Brushless self-encouragement |
| Insulation class | F Grade |
| Protection mode | IP23 |
➩ After-Sales Service
We provide comprehensive after-sales support to ensure the long-term reliability and efficiency of your generator set:
Warranty Service – Standard 1-2 year warranty, with extended service plans available.
24/7 Technical Support – Remote diagnostics, troubleshooting, and real-time monitoring assistance.
Spare Parts Supply – Genuine parts with fast delivery to ensure minimal downtime.
Routine & Preventive Maintenance – Regular inspections, oil changes, and component replacements to optimize performance.
On-Site Training & Consultation – Operator training and technical guidance for seamless operation.
Need support? Contact us anytime!
➩ FAQ
What makes this natural gas generator set more cost-effective than diesel alternatives?
Its low gas consumption (10286±5% kJ/kW·h) and oil consumption (≤1.5g/kW·h) reduce fuel costs significantly. Additionally, cleaner combustion extends engine lifespan, lowering long-term maintenance expenses compared to diesel generators, which require more frequent part replacements due to higher wear.
Can this generator set operate in parallel with other units?
Yes, it supports parallel operation, allowing synchronization with multiple generator sets to meet higher power demands. This flexibility makes it scalable for growing industrial or commercial needs.

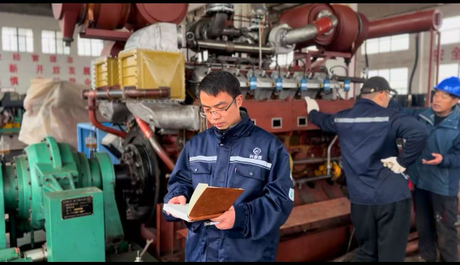

What maintenance is required to keep the generator set running efficiently?
Daily checks should include monitoring gas supply, oil levels, and system status. Every 500 hours, replace oil, inspect spark plugs, and change air filters. A comprehensive engine inspection is recommended every 1000 hours, with annual full-system checks to ensure optimal performance.
Is the generator set suitable for remote or off-grid locations?
Absolutely. Its compact size (3.0m×1.2m×1.7m) and 2.4t weight make transportation and installation feasible in remote areas. The reliable electric starting and self-diagnostic functions also minimize the need for on-site technical expertise, ensuring consistent operation in off-grid scenarios like mines or rural communities.
How does the generator set comply with environmental regulations?
Advanced air-fuel ratio control and complete combustion reduce NOx and CO₂ emissions, meeting strict global environmental standards. The low-noise design (with optional enclosures) further ensures compliance in noise-restricted zones, making it a sustainable choice for eco-sensitive applications.
This 200kW Natural Gas 1500 High-speed Generator Set stands out as a high-performance, cost-effective, and eco-friendly power solution, engineered to meet the diverse needs of modern industries and facilities.
