The NYLF3500-50 diesel generator set is a high-performance power solution engineered to meet the most demanding industrial electricity needs. Powered by the 16V280ZD-G diesel engine developed and manufactured by CRRC Ziyang Co., Ltd. with internationally advanced technology, this generator set stands out in the market. The engine boasts a rated power output of 4200 kW and a remarkable lifespan of up to 30 years with proper maintenance, ensuring long-term and reliable operation.
| Availability: | |
|---|---|
| Quantity: | |
The main generator is a TFW series AC generator, a self-excited, brushless synchronous generator produced using Siemens technology, delivering a rated power output of 3500 kW. The excitation system adopts the third-generation product from the world-renowned DECS company, providing superior automatic voltage regulation and automatic power factor adjustment functions, which contribute to stable and efficient power generation.

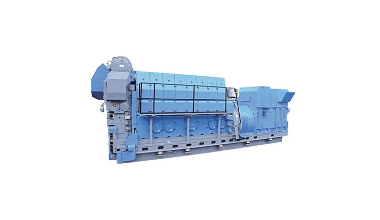

The engine and main generator are installed on a common base frame and connected by a high-performance elastic coupling, ensuring smooth power transmission. The auxiliary engine units, including the fuel supply unit, external cooling water unit, and lubricating oil pre-supply unit, are positioned at the free end, optimizing the overall structure for efficient operation.
· High Reliability: With longer maintenance intervals, the generator set can operate stably for extended periods, reducing downtime and maintenance costs. Its robust design and high-quality components ensure consistent performance even in harsh working environments.
· Low Fuel and Oil Consumption: The fuel consumption rate is only 199±5 g/kW.h, making it highly cost-effective. The lube oil consumption rate is 0.8±20% g/kW.h, further minimizing operational expenses.
· Environmental Friendliness: It features low emissions, complying with relevant environmental standards, and is equipped with a high-performance industrial silencer on intake and exhaust, resulting in low noise levels, making it suitable for various settings.
· Superior Load Performance: Good partial load performance allows the generator set to adapt to different load demands efficiently, ensuring optimal operation under varying conditions.
· Complete Automatic Safety Monitoring System: This system keeps a close eye on various parameters of the generator set, such as temperature, pressure, and voltage, providing timely alerts and protection in case of abnormalities, ensuring safe operation.
· Easy Maintenance: The design of the generator set facilitates convenient and simple maintenance, with accessible components and clear maintenance procedures, reducing the difficulty and time required for upkeep.
· Standard Configuration: Includes diesel engine, generator, common base frame, generator management control cabinet (including synchronization and grid connection modules), auxiliary distribution cabinet, engine control cabinet, isolator, auxiliary unit (external fuel supply, cooling water, lubrication system), elastic coupling, starter motor, silencer, corrugated pipe, spare parts, tools, and documentation.
· Optional Items: A wide range of optional configurations is available based on user needs, such as mobile startup power cabinet, remote radiator water tank, ATS automatic load transfer cabinet, automatic synchronization cabinet, synchronization cabinet, UPS, silent box, battery float charger, neutral grounding resistor cabinet, PT cabinet, differential/microcomputer protection device, and CT metering cabinet.
The combination of the 16V280ZD-G diesel engine and TFW series AC generator ensures strong power output. The engine's rated power of 4200 kW and the generator's 3500 kW rated power provide sufficient electricity to meet large-scale power demands. The high fuel efficiency, with a consumption rate of 199±5 g/kW.h.
The engine's lifespan of up to 30 years is a significant advantage, offering long-term value for investment. This long lifespan is attributed to the advanced technology and high-quality materials used in its manufacturing, ensuring durability and reliability over an extended period.
The use of Siemens technology in the generator and DECS's third-generation excitation system guarantees high performance and stability. These advanced technologies contribute to precise voltage regulation, efficient power generation, and seamless integration with various electrical systems.
With its flexible configuration options, the generator set can be tailored to meet the specific requirements of different applications, whether in industrial plants, data centers, hospitals, or construction sites. Its ability to operate in various environments and under different load conditions makes it a versatile power solution.
We are a reputable manufacturer with extensive experience in producing high-quality generator sets. The 3500kW diesel generator set is manufactured under strict quality control standards, ensuring that each unit meets the highest levels of performance and reliability. Our production process adheres to international norms, and we have obtained relevant certifications to guarantee product quality.
· Custom Services: We offer custom services to meet the unique needs of our customers. Whether it's specific configurations, dimensions, or performance requirements, our team of experts will work closely with you to deliver a tailored solution.
· One-stop Services: From pre-sales consultation, product selection, and installation to after-sales maintenance and technical support, we provide a complete one-stop service. Our professional team is always available to assist you with any issues, ensuring a smooth and hassle-free experience.
We provide comprehensive support, including access to product documentation, videos, and FAQs through our resources section. Our after-sales service team is responsive and efficient, ensuring that any problems with the generator set are resolved promptly. We also offer a one-year warranty for all our products, giving you peace of mind.
Standard Operating Environment: [Absolute Atmospheric Pressure] 100 kPa, Air Temperature: 25°C, Relative Humidity: 30%, Intake Air Cooling Temperature: 25°C
Specification | Value |
Cylinder Arrangement | V-Type 50° |
Number of Cylinders | 16 |
Bore × Stroke | 280 mm×285 mm |
Compression Ratio | 2.5 |
Total Displacement | 280.8L |
Rated Speed | 1000 r/min |
Lowest Idle Speed | 400 r/min |
Maximum Allowable Speed | 1100 r/min |
Mean Piston Speed at Rated Speed | 9.5m/s |
Rated Power | 4200 kW |
Maximum Explosion Pressure | 13.72 MPa |
Crankshaft Rotation (View from Output End) | Clockwise |
Fuel Consumption Rate | 199±5 g/kW.h |
Lube Oil Consumption Rate | 0.8±20%g/kW.h |
Overall Dimensions(L×W×H) | 4971 mm×1725 mm×2895 mm |
Net Weight of Diesel Engine | 24,500 kg |
Oil Pan Lubricating Oil Capacity | 1200 L |
Recommended Engine Oil | API CD grade or above, SAQW40 or 15W/40 lubricating oil |
Starting Method | 24VDC Electric Start |
Specification | Value |
Generator Set Model | NYLF3500-50 |
Generator Set Power | 3500 kW |
Engine Model | 16V280ZD-G |
Generator Model | TFW35003A |
Generator Frequency | 50 Hz |
Rated Speed | 1000 r/min |
Rated Voltage | 10.5 kV |
Cooling Method | Closed/Open Type |
Compliance Standards (including but not limited to) | GB2820.1~12 |
Standard Configuration | Optional Items |
◆ Diesel Engine | □ Mobile Startup Power Cabinet |
◆ Generator | □ Remote Radiator Water Tank |
◆ Common Base Frame | □ ATS Automatic Load Transfer Cabinet |
+ Generator Management Control Cabinet (Including Synchronization and Grid Connection Modules) | □ Automatic Synchronization Cabinet |
◆ Auxiliary Distribution Cabinet | □ Synchronization Cabinet |
◆ Engine Control Cabinet | □ UPS |
◆ Isolator | □ Silent Box |
◆ Auxiliary Unit (External Fuel Supply, Cooling Water, Lubrication System) | □ Battery Float Charger |
◆ Elastic Coupling | □ Neutral Grounding Resistor Cabinet |
◆ Starter Motor | □ PT Cabinet |
◆ Silencer | □ Differential/Microcomputer Protection Device |
◆ Corrugated Pipe | □ CT Metering Cabinet |
◆ Spare Parts | |
◆ Tools | |
◆ Documentation |
Open Type | Auxiliary Unit | |
Length (mm) | 7600 | 2000 |
Width (mm) | 2700 | 2000 |
Height (mm) | 3920 | 3200 |
Weight (t) | 54 | 2 |
