2200kW Natural Gas Generator Set Introduction
1. Product Overview
The 2200kW natural gas generator set is a high-efficiency, environmentally friendly, and stable power generation solution designed for large-scale industrial and commercial applications. Fueled by clean natural gas, it provides reliable continuous or peak-shaving power while significantly reducing emissions and operating costs. It is ideal for use in industrial parks, oil and gas fields, power plants, and data centers.
2. Technical parameters
Parameters of gas generator sets |
Rated power (kW) | 2200 |
Rated speed (rpm) | 1000 |
Rated voltage (V) | 10500 |
Frequency(Hz) | 50 |
Power factor | 0.8 lagging |
Phase number and connection method | Three-phase/Star |
Power generation efficiency | 40% |
Gas consumption rate (kJ/kW·h) | 9000±5% |
Engine oil consumption rate (g/kW·h) | 0.6 |
Noise (dBA) | 105 |
Continuous power | 80%-90% |
Weight (kg) | 38000 |
Overall dimensions (length × width × height)m | 7.2×1.9×3.2 |
Cooling method | Water cooling |
Overhaul cycle | 60000 hours |
Design life | 30 |
Engine parameters |

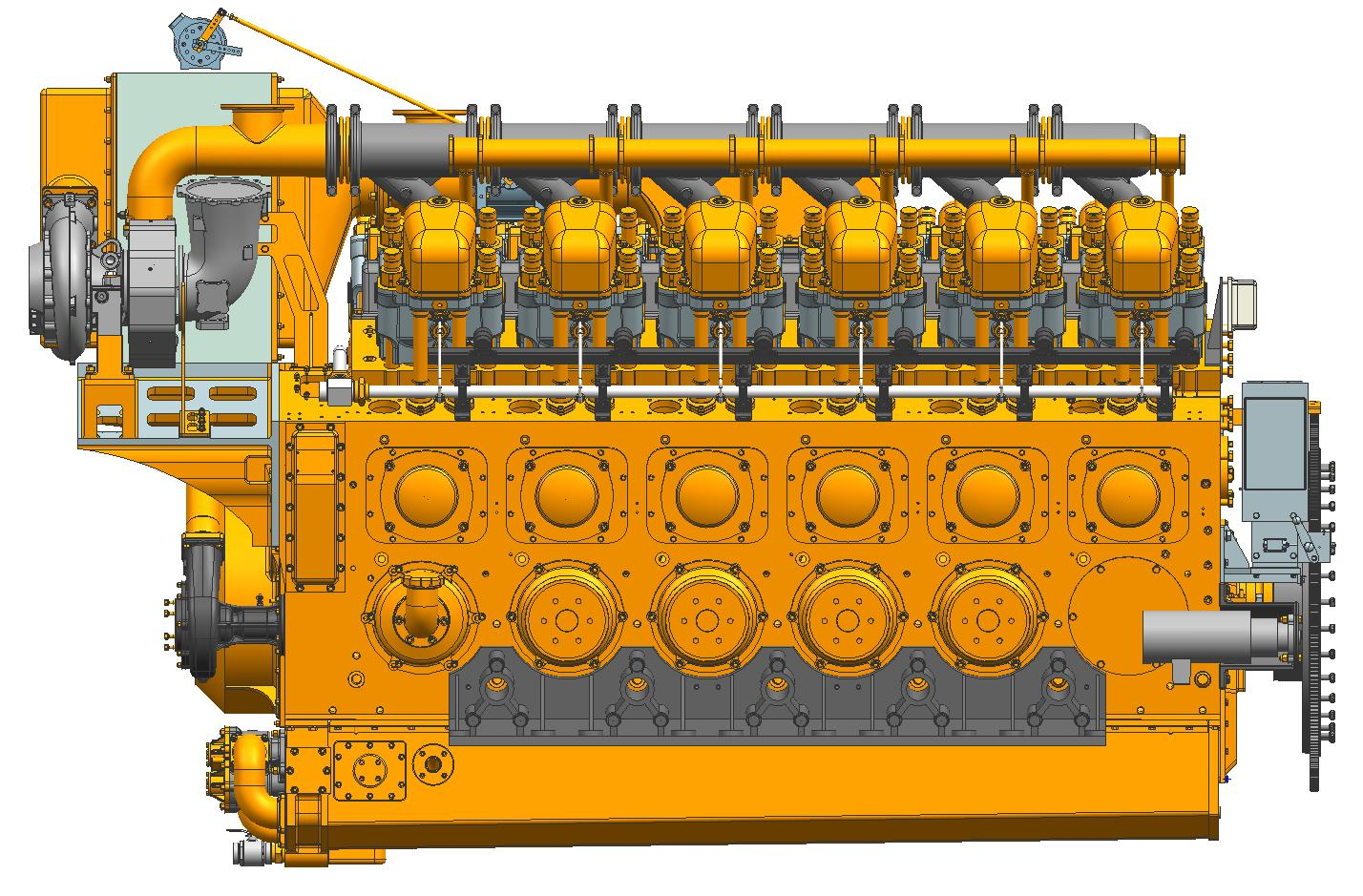

Model | Z12V280/T |
Rated speed (rpm) | 1000 |
Number of cylinders | 12 |
Cylinder type | Vshape |
Cylinder bore (mm) | 280 |
Stroke(mm) | 285 |
Displacement (L) | 210.5 |
Exhaust temperature (℃） | ≤530 |
Gas intake pressure (kPa) | 400-500 |
Starting method | Air start |
Generator parameters |
Rated capacity (power) kVA | 2750 |
Rated voltage (V) | 10500 |
Wiring method | Three-phase |
Excitation mode | Brushless self-excitation |
Insulation class | Class H |
Protection grade | IP23 |
3. Application Scenarios
Oilfields and natural gas treatment facilities
Industrial zones and private power stations
Commercial complexes, hospitals, and data centers
Biogas and landfill gas projects (as an alternative to natural gas)
Microgrid systems with solar and energy storage integration
4. Key Advantages
High Efficiency: System thermal efficiency up to 40%, compatible with various gas sources
Smart Control: Advanced PLC system supports grid connection and parallel operation
Low Emissions: Complies with EU/US environmental standards; NOx ≤ 500mg/Nm³
Compact Design: Modular structure for easy installation and maintenance
Reliable Performance: Stable under harsh conditions including high altitude and extreme temperatures
5. Service & Support
Customized design, on-site survey, and turnkey installation
24/7 technical support and spare parts availability
Optional waste heat recovery system to improve overall energy efficiency
Optional SCR de-NOx and noise reduction systems to meet strict environmental requirements
