One Large Biogas Generator Set or Two Smaller Units?

A biogas power plant needs more than enough installed generating capacity. It also needs a practical way to manage changing fuel production, electrical demand, maintenance, and unexpected shutdowns. These operating conditions can make the number of generator sets just as important as their total rated output.

Imagine a project considering one 500kW biogas generator set or two 250kW units. Both arrangements have 500kW of combined nominal capacity, but they do not behave the same way during daily operation. The single-unit option is mechanically simpler, while the two-unit arrangement may offer more flexibility in certain conditions.

KLY supplies industrial biogas generator sets for waste-to-energy applications. When planning a new installation, buyers should compare the full power generation system rather than choosing an arrangement based only on the number of engines or their purchase prices.

One 500kW Generator Set vs. Two 250kW Units

The two arrangements may have the same combined nameplate capacity, but their equipment requirements and operating characteristics are different.

These are planning considerations, not automatic advantages. Two smaller engines do not always use less fuel, and a single large engine is not always the cheaper long-term choice.

The better arrangement depends on how the biogas plant will operate throughout the year.

When One Large Biogas Generator Set Makes Sense

A single large generator set can be an efficient solution when the project has a steady fuel supply and a relatively stable electrical load.

For example, a biogas facility that consistently has enough treated gas to support approximately 500kW of electrical generation may prefer one larger unit. This arrangement reduces the number of individual engines, starting systems, lubrication circuits, and routine service schedules.

The electrical system may also be more straightforward because there is no need to coordinate multiple generating units during normal operation. However, the installation still requires appropriate electrical protection, switchgear, and control equipment for its intended operating mode.

Simpler Equipment Arrangement

Every generator set includes an engine, alternator, cooling system, starting equipment, lubrication components, and controls.

Installing one unit instead of two may reduce the number of duplicated components. It can also simplify parts of the maintenance plan and reduce the number of mechanical systems that operators need to inspect.

However, the larger engine still needs enough space for cooling, ventilation, and maintenance. The plant room must also provide access for major component service or replacement.

Product Example: KLY 12V190G

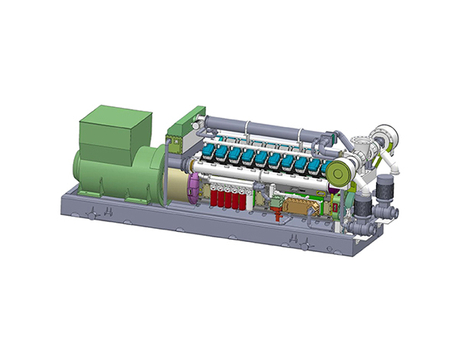

KLY's 12V190G gas generator set offers a relevant large-unit option for project evaluation.

Its 12V190G-1 configuration is listed with rated output in the 500–600kW range, 1000RPM operation, 50Hz frequency, and water cooling. The product is primarily presented for natural gas applications, while KLY also identifies biogas among the fuels to which the engine can be adapted.

For a biogas project, the achievable continuous output must be confirmed against the actual fuel composition and operating conditions. A published rated power range should not be treated as a guarantee that the unit will continuously deliver 500kW on any available biogas.

If the project has stable fuel production and a suitable load, a larger generator set may provide a relatively simple equipment arrangement. The main trade-off appears when the engine needs maintenance or when operating demand falls.

Why Two Smaller Generator Sets Can Be More Flexible

A two-unit arrangement separates the generating capacity into smaller blocks. Instead of depending on one engine for all power production, operators can potentially run one or both units according to the available gas and electrical demand.

This flexibility is useful when a biogas project experiences seasonal changes in feedstock supply or regular changes in plant electricity use.

Matching Output to Changing Demand

Consider a facility whose electrical demand varies between 200kW at night and 430kW during the day.

With one 500kW generator set, the engine would need to operate at approximately 40% of nominal output to supply a 200kW load, assuming the electrical and fuel conditions permit that operating point.

With two 250kW units, one engine could theoretically supply 200kW at approximately 80% load. When demand increases, both units could operate together to supply the higher requirement.

This example illustrates a potential benefit of modular generation, but it is not a performance guarantee. The selected generator sets must support the intended load range, and their efficiency at each operating point should be confirmed with the manufacturer.

The available biogas must also support the chosen dispatch strategy. If only enough gas exists for one smaller unit, installing two engines does not create additional fuel energy.

Maintaining Power During Service

Gas engines require planned maintenance, including inspections and replacement of service parts. A single-unit plant normally loses all generation from that machine during scheduled engine shutdowns.

With two smaller generator sets, one engine may continue producing electricity while the other is being serviced. This can reduce the amount of generating capacity unavailable at the same time.

However, the remaining 250kW unit cannot automatically replace the full output of a 500kW system. If the facility requires more than 250kW, additional grid power, another generating source, or load reduction may still be necessary.

This is partial redundancy, not a guarantee of full-capacity backup.

Parallel Operation Requires the Right Control System

Two generator sets can operate separately or work together through a properly designed electrical system. If both units are intended to supply a common bus at the same time, they need suitable synchronization, load sharing, and protection.

A complete parallel system may include:

• Generator synchronization and control equipment

• Electrical switchgear and protective devices

• Active and reactive load-sharing functions

• Compatible engine governors and voltage regulation

• Plant-level power management controls

• Appropriate interconnection or island-operation arrangements

These systems coordinate the generator sets so they can operate within their permitted electrical limits.

KLY's 12V135G gas generator set provides a smaller-unit product example. Its NPG250 configuration lists 250kW continuous electrical output under the published conditions, with 1500RPM operation and 400/230V, 50Hz output.

The product also describes parallel-operation capability. For two-unit biogas projects, KLY would still need to confirm the required synchronization package, fuel configuration, and available output for the actual installation.

Adding a second engine without designing the electrical integration correctly would not provide a functioning parallel power station.

What Happens When Biogas Production Changes?

Fuel supply is one of the biggest differences between a biogas plant and a conventional natural gas installation.

A facility using pipeline gas can often purchase additional fuel when demand rises, subject to its supply arrangement. A biogas plant depends on digestion performance, feedstock availability, gas storage, and the amount of gas allocated to other processes.

During periods of reduced gas production, the available fuel energy may not support the full installed generating capacity.

One Large Unit at Reduced Output

A larger engine may be able to operate at partial load, but every engine has an approved operating range. Long periods at unsuitable loads can affect efficiency, emissions, and maintenance.

Before choosing one large unit, buyers should review the manufacturer's part-load performance data and minimum permitted continuous load.

If fuel production frequently falls below the level needed for efficient operation, the plant may need a different generating strategy.

Two Units with Staged Operation

With two smaller units, the plant may operate one generator set when gas availability is low and start the second when there is enough fuel and useful electrical demand.

This can help the generating arrangement follow changing conditions more closely.

However, repeated starts and stops also place demands on the equipment. The operating strategy should avoid unnecessary cycling and keep each engine within its approved load range.

Gas holders and appropriate pressure controls can help manage short-term supply fluctuations. They cannot compensate for a long-term shortage of biogas.

KLY provides customized gas treatment and energy solutions, including gas storage, pressurization, and integrated control systems. These supporting systems are important whether the project uses one generator set or several.

Does One Large Unit Cost Less Than Two Smaller Units?

Purchase cost is important, but the comparison should cover the entire operating life of the plant.

A single larger generator set may require fewer duplicated engine components and a simpler generating arrangement. Two smaller units require more individual hardware and may need additional synchronization equipment.

However, the ability to continue partial generation during maintenance can have value. This is particularly relevant at facilities where generated electricity offsets significant grid purchases or where gas would otherwise need to be diverted or flared.

A complete cost comparison should include:

Neither configuration should be declared cheaper without project-specific quotations and operating data.

The correct financial comparison uses expected annual electricity production and total lifecycle cost rather than only the initial purchase price.

How Does CHP Affect the Decision?

Some biogas power plants use engine waste heat for digester heating, industrial processes, or other thermal loads.

In these combined heat and power projects, generator configuration affects not only electrical output but also the availability of recoverable heat.

With one large engine, a planned shutdown can interrupt both electricity and heat recovery. With two smaller units, the operating engine may continue supplying part of the required thermal energy during maintenance.

The value of this arrangement depends on the heat demand and the thermal output available from each selected engine. A facility requiring continuous digester heating may still need a backup boiler or another reliable heat source.

CHP equipment must be included in the design rather than assumed to be part of the generator set package. Heat exchangers, piping, pumps, and control systems need to be matched to the plant's temperature and heating requirements.

Five Questions to Answer Before Choosing

Before deciding between one large biogas genset and two smaller units, project owners should answer five practical questions.

1. How stable is the daily biogas supply? A steady fuel supply may suit one larger engine, while significant variation may support a staged operating strategy.

2. What is the normal electrical load? The selected configuration should perform well at the loads the site experiences most often, not only at its annual peak.

3. How much generation can be lost during maintenance? If the plant cannot tolerate complete loss of onsite generation, modular capacity may provide useful partial redundancy.

4. Is the system grid-connected or island-operated? Electrical controls, backup arrangements, and load management depend on the operating mode.

5. What expansion is expected? Future increases in biogas production or electricity demand may affect the preferred first-stage installation.

These questions help turn a simple equipment comparison into an operating plan.

Selecting a Generator Set Configuration for Your Project

One large biogas generator set can be a practical choice when fuel production and electrical demand remain relatively stable. Two smaller units may offer useful flexibility when loads change or when continued partial generation during maintenance is valuable.

Neither arrangement is automatically more efficient, more reliable, or less expensive in every project. Those outcomes depend on the selected engines, their fuel requirements, electrical integration, maintenance strategy, and site conditions.

KLY provides industrial gas generator sets and tailored project support for waste-to-energy systems. If you are comparing a single 500kW-class unit with two 250kW units, contact KLY with your gas production records, electrical load profile, and intended operating mode. These details can help define a generating arrangement that fits the plant's actual long-term requirements.
